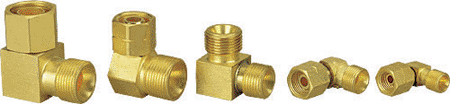

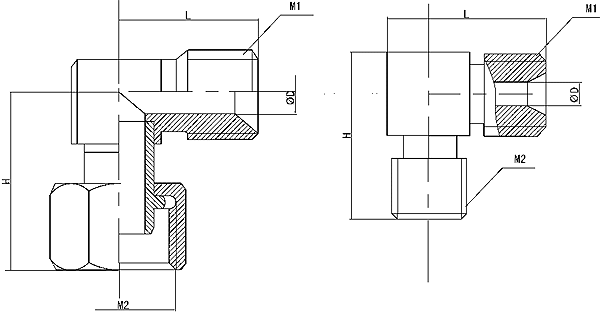

| ZJ系列直角弯头 |
|
|
|
| |
|
|
| |
| 型号 |
D |
H |
L |
M1 |
M2 |
| ZJ2211 |
5 |
28 |
22 |
G1/4" |
G1/4" |
| ZJ2212 |
5 |
28 |
22 |
G1/4"左 |
G1/4"左 |
| ZJ3311 |
8 |
31.5 |
23 |
G3/8" |
G3/8" |
| ZJ3312 |
8 |
31.5 |
23 |
G3/8"左 |
G3/8" |
| ZJ4411 |
10 |
37.5 |
26 |
G1/2" |
G1/2" |
| ZJ4412 |
10 |
37.5 |
26 |
G1/2"左 |
G1/2"左 |
| ZJ5401 |
10 |
43 |
40 |
G5/8" |
G1/2" |
| ZJ6411 |
10 |
40 |
30 |
G3/4" |
G1/2" |
| ZJ6412 |
10 |
40 |
30 |
G3/4"左 |
G1/2"左 |
| ZJ6611 |
14 |
47 |
38 |
G3/4" |
G3/4" | |
| |
|
|
|
|

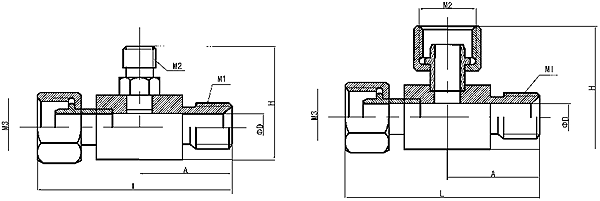

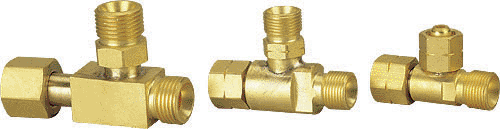

| 型号 |
M1 |
M2 |
M3 |
L |
H |
A |
D |
| 3T22211 |
G1/4" |
G1/4" |
G1/4" |
59 |
34 |
29 |
5 |
| 3T22212 |
G1/4"左 |
G1/4"左 |
G1/4"左 |
57 |
34 |
29 |
5 |
| 3T33311 |
G3/8" |
G3/8" |
G3/8" |
68 |
43.5 |
30.5 |
8 |
| 3T44411 |
G1/2" |
G1/2" |
G1/2" |
85.5 |
51 |
29 |
12 |
| 3T44412 |
G1/2"左 |
G1/2"左 |
G1/2"左 |
85.5 |
51 |
29 |
12 |
| 3T64811 |
G3/4" |
G1/2" |
G1" |
91.2 |
64.5 |
35 |
14 |
| 3T84811 |
G1" |
G1/2" |
G1" |
96.2 |
64.5 |
40 |
14 |
| 3T32322 |
G3/8"左 |
G1/4"左 |
G3/8"左 |
60.5 |
38.5 |
24 |
4 |
| 3T84821 |
G1" |
G1/2" |
G1" |
116.2 |
77.5 |
44 |
22.2 | |

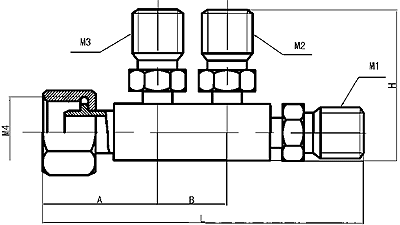

| 4T系列四通接头 |
|
|
| 型号 |
M1 |
M2 |
M3 |
M4 |
L |
H |
A |
B |
| 4T444411 |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
122.5 |
54.5 |
41.5 |
35 |
| 4T646611 |
G3/4" |
G1/2" |
G3/4" |
G3/4" |
132 |
63.5 |
47 |

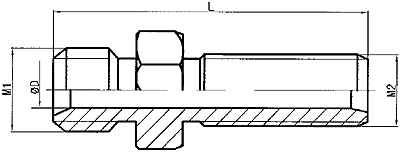

48 | |
| LG系列调节螺杆 |
|
|
| 型号 |
M1 |
M2 |
ØD |
L |
| LG441 |
G1/2" |
G1/2" |
12 |
88.5 |
| LG442 |
G1/2"左 |
G1/2"左 |
12 |

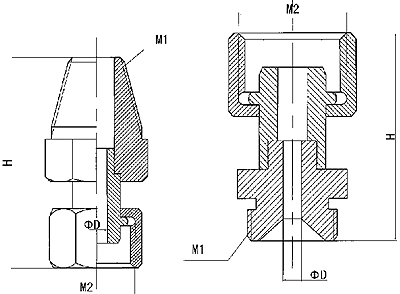

88.5 | |
| ZT系列直通接头 |
|
|
| 型号 |
M1 |
M2 |
H |
ØD |
| ZT6811 |
G3/4" |
G1" |
65 |
14 |
| ZT6812 |
G3/4"左 |
G1"左 |
65 |
14 |
| ZTZ4311 |
ZG1/2" |
G3/8" |
60.5 |
10 |
| ZTZ4312 |
ZG1/2" |
G3/8"左 |
60.5 |
10 |
| ZTZ4411 |
ZG1/2" |
G1/2" |
60.5 |
10 |
| ZTZ4412 |
ZG1/2" |
G1/2"左 |
60.5 |
10 |
| ZTZ2211 |
ZG1/4" |
G1/4" |
39 |
5 |
| ZTZ2212 |
ZG1/4" |
G1/4"左 |
39 |
5 |
| ZT2M1211 |
ZG1/4" |
M12×1 |
34.5 |
4 | |
| |

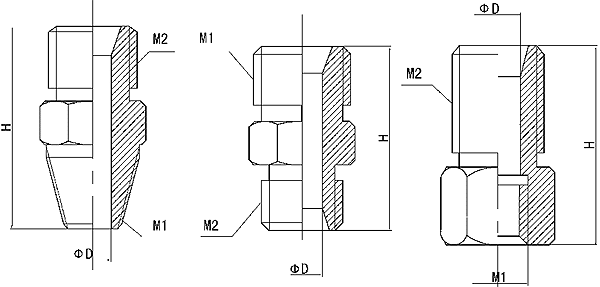

| BJ系列变径接头 |
| |
|
|
 |
| |
| 型号 |
M1 |
M2 |
H |
D |
| BJ331 |
G3/8" |
G3/8" |
35 |
9 |
| BJ441 |
G1/2" |
G1/2" |
46 |
11 |
| BJ641 |
G3/4" |
G1/2" |
47 |
11 |
| BJ642 |
G3/4"左 |
G1/2"左 |
47 |
11 |
| BJZ641 |
ZG3/4" |
G1/2" |
47 |
11 |
| BJZ681 |
ZG3/4" |
G1" |
50 |
14 |
| BJZ231 |
ZG1/4" |
G3/8" |
35.5 |
6 |
| BJZ321 |
ZG3/8" |
G1/4" |
35 |
7 |
| BJZ331 |
ZG3/8" |
G3/8" |
35 |
9 |
| BJZ332 |
ZG3/8" |
G3/8左" |
35 |
9 |
| BJZ341 |
ZG3/8" |
G1/2" |
50 |
10 |
| BJZ342 |
ZG3/8" |
G1/2"左 |
50 |
10 |
| BJZ441 |
ZG1/2" |
G1/2" |
45.5 |
12 |
| BJZ442 |
ZG1/2" |
G1/2"左 |
45.5 |
12 |
| BJZ431 |
ZG1/2" |
G3/8" |
45.5 |
9 |
| BJZ221 |
ZG1/4" |
G1/4" |
35.5 |
6 |
| BJZ222 |
ZG1/4" |
G1/4"左 |
35.5 |
4 |
| BJZ881 |
ZG1" |
G1" |
55 |
22 |
| BJZ882－A |
ZG1" |
G1"左 |
55 |
22 |
| BJZ882－B |
ZG1" |
G1"左 |
75 |
22 |
| BJZM1431－A |
ZM14×1.5 |
G3/8" |
42 |
9 |
| BJZM1431－B |
ZM14×1.5 |
G3/8" |
42 |
8 |
| BJLM1431 |
M14×1.5 |
G3/8" |
36 |
6 |
| BJLM1432 |
M14×1.5 |
G3/8"左 |
36 |
6 | |
| |

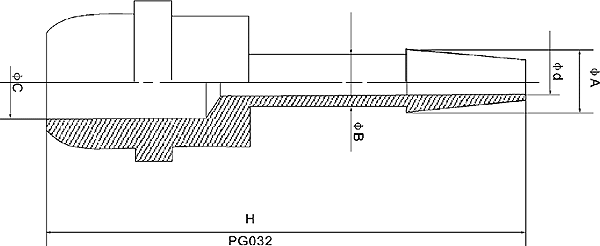

| PG系列皮管接头 |
| |
|
|
| |
|
|
| |
| 型号 |
A |
B |
C |
d |
H |
| PG032 |
4 |
3.5 |
5 |
2 |
32 |
| PG063 |
6 |
7 |
12.5 |
4.5 |
47.5 |
| PG082 |
8.5 |
8.5 |
9 |
4.5 |
49.5 |
| PG083 |
8.5 |
9.5 |
12.5 |
5.5 |
49.5 |
| PG084 |
8 |
9 |
15 |
4.5 |
49.5 |
| PG103 |
10.5 |
11 |
12.5 |
7.9 |
47.5 |
| PG104 |
10.5 |
11 |
15 |
7.9 |
49.5 |
| PG124 |
11.5 |
13 |
15 |
9 |
49 |
| PG136 |
13 |
13.5 |
19.5 |
7 |
50 |
| PG176 |
17.5 |
18.5 |
19.5 |
10 |
52 |
| PG196 |
19 |
19.5 |
19.6 |
14 |
51 | |
